Convection Ovens, Microwave Ovens, and Steam Kettle

 Convection Ovens

There are two convection ovens.  These run on 110 VAC and propane.  These are excellent for heating large quantities of food rapidly, sort of a super microwave.  The top control is ON, OFF, and COOL DOWN.  The center position is OFF.  The middle control is the temperature, while the bottom control is a timer.

Foods left in the oven will stay warm for a while, but check the temperature to ensure food safety.  A couple of minutes of heating occasionally will keep the contents warm.

These units have electronic pilot lights, and light automatically.  However, after turning them on, check for heat, or look to see if the burner is on, as sometimes the electronic pilot does not work.  If so, turn the oven off and try again.  In some cases, you may have to repeat this process 5 or 10 times to get the oven to warm up!  The oven repairmen say that wind and breeze can affect whether or not it starts, so make sure the kitchen doors are shut, and consider turning off the exhaust fan.  The cover underneath the door lifts up and then tilts out; the repairmen says this might make it easier to light.

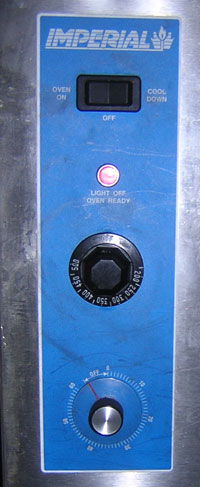

Convection controls

Microwave Ovens


There are two microwave ovens.  If the display is dark, open the door and the display should light up.  To run the microwave for a given time, push "Time Entry", then key in the time, then push "Start".

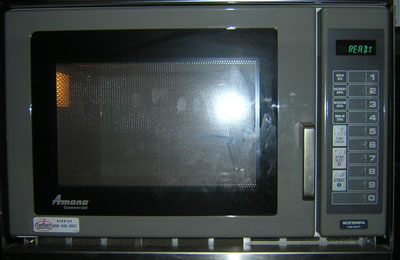

Microwave

Steam Kettle


The steam kettle is an efficient way of heating liquids, such as soups.  The steam kettle works like a double boiler, so it is almost impossible to burn the food.

Note the handle for tilting the kettle for serving.  Pull out the knob on the upper right of the control panel to unlock the kettle for tilting.

The kettle has a temperature control and an on-off switch.

If the kettle runs low on water, you will need to shut it down, let it cool, and add water as directed.

Important:  The steam kettle runs on 3 phase 208 power.  Do not use the steam kettle if the kitchen is running on external power, as that may burn it out.  It will work fine on the kitchen generator.

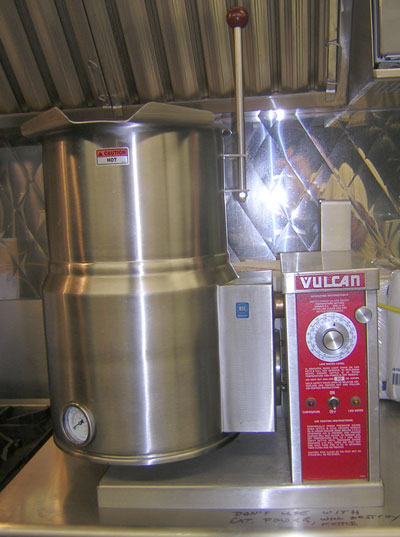

Steam Kettle
