General Information
The truck is built on a Freightliner commercial chassis, with a diesel engine and a separate diesel generator. It weighs more than 17,000 pounds (16,740 lbs empty). It is 12 feet high, and 10 feet wide at the mirrors. It has an automatic transmission. As with any heavy duty vehicle, it does not stop, corner, or accelerate like a car. Allow extra space and time to stop or perform any kind of maneuver, do not tailgate. Use the side mirrors to observe what is going on beside you and behind you. Be aware that you may have a blind spot in the mirrors for vehicles next to the truck. Unlike many large vehicles, the front wheels can turn very sharply, making the vehicle more maneuverable, but also increasing the opportunity for the rear of the truck to swing in the opposite direction and hit something. The long rear overhang also increases the swing of the rear of the truck while making sharp turns.Transmission and Mountain Driving
The transmission is similar to an automobile automatic transmission, except that it has no "Park" position. R is reverse, N is Neutral, D is drive. 3, 2 and 1 keep the transmission in a lower gear for going down steep hills, such as are found in the mountains. If the vehicle is accelerating downhill, or if you see a sign warning of a steep downgrade, slow down and downshift. It is always better and safer to start down a steep hill in a lower gear and then shift up later, than to start in a higher gear and have to use the brakes hard and downshift. On steep mountain roads, the truck may accelerate down the hill even in 1st gear. The engine braking is somewhat limited; If you have to use the brakes quite a bit, pull over and stop every few minutes to check the brakes and to let them cool down.The
transmission in this vehicle does not have a "Park" position! It
is mandatory to apply the parking brake before you turn off the engine
or get out of the vehicle. If parked on a steep grade, chock the
wheels, and turn the steering wheel to reduce the risk of runaway.

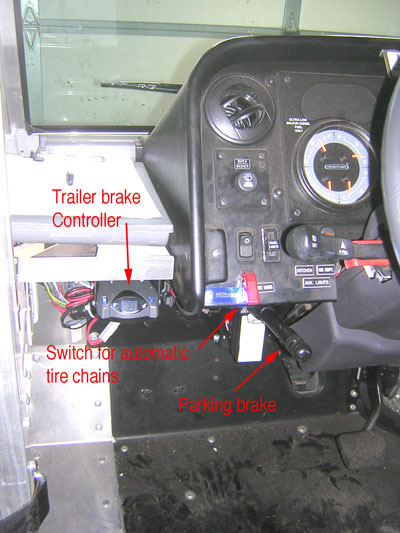

When parking the unit, stop the unit,
and then apply the parking brake by pulling up the black handle
left of the steering wheel.
Starting the truck engine
Turn the ignition key to "On", wait for most of
the
lights
on the dash above the key to go out, and then turn the key to
"start". You might have to wait a little on cold weather to heat
the glow
plugs.
After starting the engine, you should have oil pressure in 15
seconds;
if not, shut down the engine and report the problem

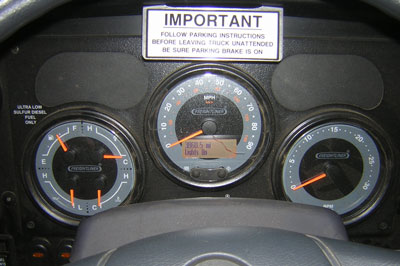

Center of Dashboard
Note the sign that reminds you to apply the parking brake.
The oil and temperature gauges should read near the middle of the range, not too high or too low.
